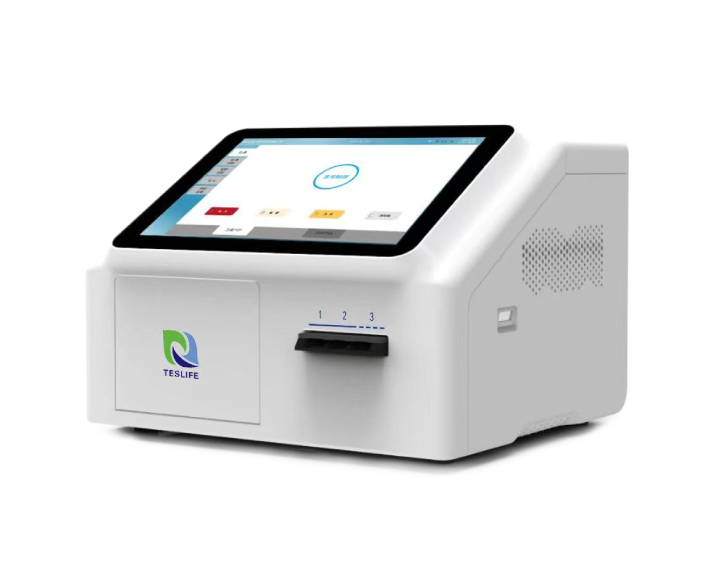

Veterinary Automatic Microfluidic Multifunctional Detection and Analysis System TMF1000V
(Biochemistry, coagulation, immunology, urinalysis, electrolytes)
| Sample typ | Whole blood, plasma, serum |
| Test time | Biochemical coagulation: 12 minutes |
| Immunofluorescence: 3 minnutes | |

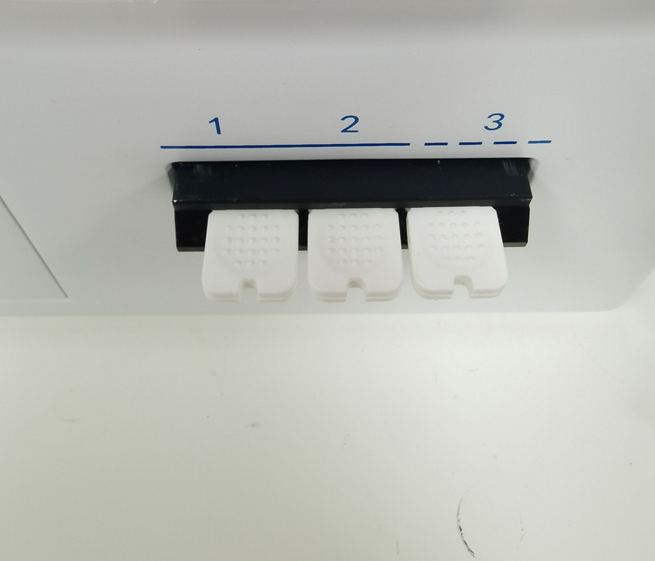

| Platter/card strip identification |
Biochemistry section: Built-in NFC quality control chip Immunology section: Built-in QR code quality control information |
| Sample Volume |
Biochemistry: 100 , Coagulation: 50 μL Peripheral blood: 40 μL |
| Fluorescence: 5~10μl/item | |

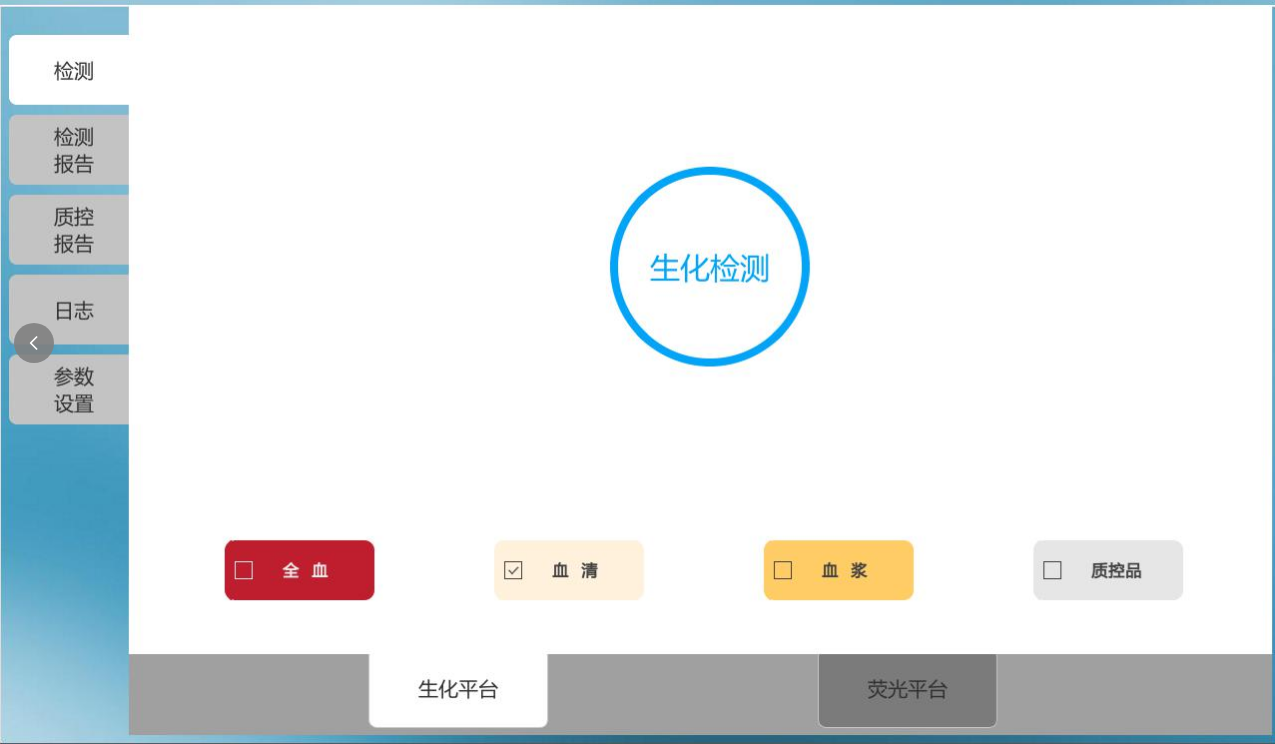

| Display | 10 inch colorful intelligent screen |
| Printer | Built-in thermal printer |
| Instrument interface | USB、WIFI、RS232、Built-in 4G communication (under development) |
| Storage | store 100,000 test results |
The biochemical coagulation test was performed with a three-step method
1.Add sample
2.Click “start”
3.12 mins

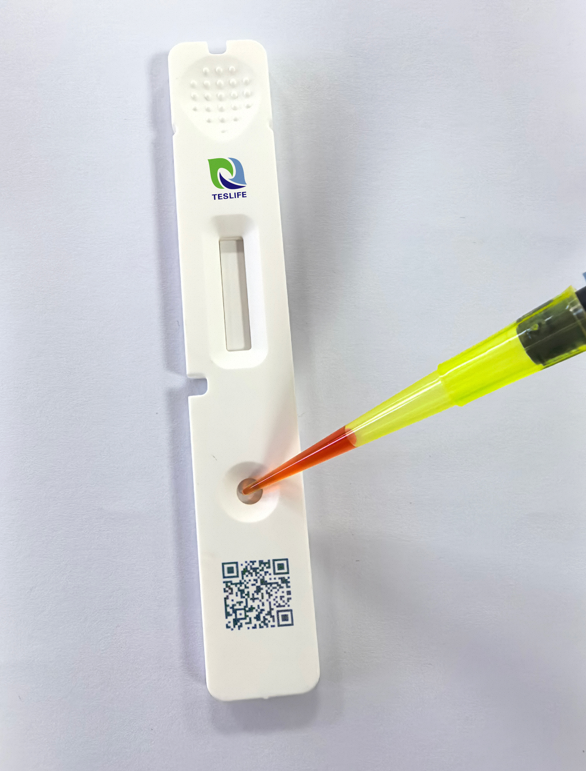

Three-step immunofluorescence operation method
Step1
Add Sample
Step2
Put for testing
Step3

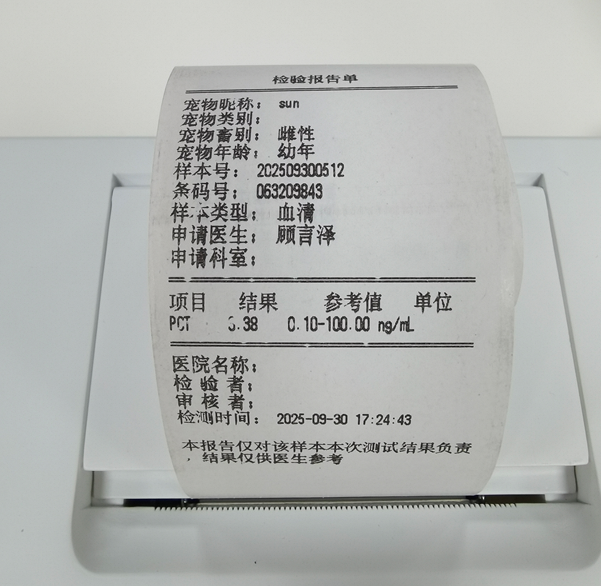

Print the result
Note: All project quality control only needs to be entered once
Operation video
视频播放失败，请稍后重试
8 Major Advantage
01 All-in-one system
Biochemistry + Coagulation + Urine + Immunology + Electrolytes, a five-in-one system offering exceptional value!

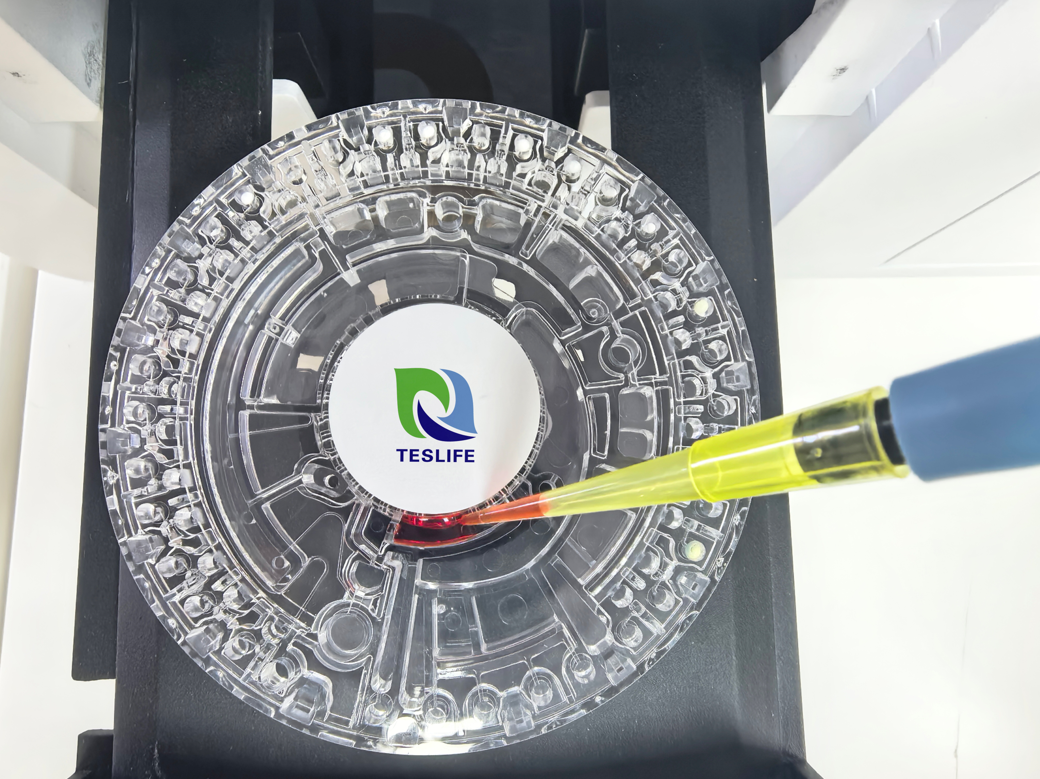

02 Microfluidics
Utilizing microfluidic technology, whole blood samples can be directly loaded, providing more accurate quantitative results and enabling batch testing of multiple parameters.
03 Comprehensive tests
13 biochemical test panels (customizable), complete range of single-card, two-parameter to six-parameter immunology test panels
04 Accurate
Xenon lamp light source + dual reagents + anti-cross-contamination technology for more accurate results, comparable to large-scale biochemical analyzers.
05 Simple
Built-in diluent, magnetic disc positioning, one-step sample loading, easy operation.
06 Convenient
Reagent kits are compatible with self-aspirating anticoagulant capillary blood collection tubes, providing quantitative, simple, fast, and painless blood collection.
07 Intelligent
Smart 4G connectivity, worry-free background upgrades and maintenance, AI-assisted report interpretation, supporting clinical practice.
08 Secure
Smarter NFC disc settings, data encryption, secure and worry-free connectivity.
Veterinary Diagnosis
